Ti32 Infrared Thermal Imager Contact us for more details

FLUKE Ti32
FLUKE Ti32
FLUKE Ti32
FLUKE Ti32
temp-thumb
temp-thumb
temp-thumb
temp-thumb
Features

Superior image quality
�E Delivers the clear, crisp images needed to find problems fast with its 320x240 sensor.
�E Identify even the smallest temperature differences that could indicate problems with industry-leading thermal sensitivity (NETD).
�E Automatic alignment (parallax correction) of visual and infrared images with Fluke patented IR-Fusion® �E Optional telephoto and wide angle lenses available for added versatility and special applications. (easily installable in the field)

Easy to use
�E Field replaceable batteries give you maximum flexibility no matter where your work takes you.
�E Intuitive, three-button menu is easy to use�Xsimply navigate with the push of a thumb.
�E No need to carry pen and paper�Xrecord findings by speaking into the imager. Voice annotations can be recorded with every image you take. Voice comments are saved along with individual images for future reference.
�E One-handed focus capability, emissivity correction, reflected background temperature compensation, and transmission correction increase the accuracy of measurements in most situations.
�E Adjustable hand strap for left-or right-handed use.

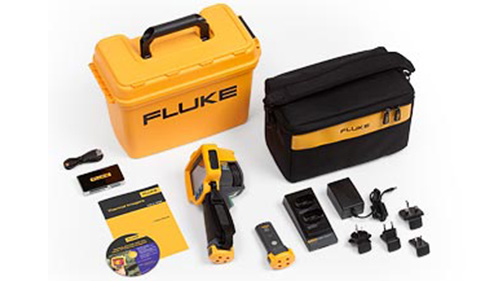

�E Everything needed to get started is included.

Rugged
�E Optimized for field use in challenging work environments.
�E Engineered and tested to withstand a 2 m (6.5 ft) drop for the ultimate peace of mind - When was the last time you dropped a tool or piece of equipment?
�E Withstands dust and water�Xtested to an IP54 rating.
�E Manufactured in the U.S.A.

Specifications

Detailed Specifications
Temperature
Temperature measurement range (not calibrated below -10 �XC) -20 �XC to +600 �XC
(-4 �XF to +1112 �XF)
Temperature measurement accuracy �� 2 �XC or 2 % (at 25 �XC nominal, whichever is greater)
On-screen emissivity correction Yes
On-screen reflected background temperature compensation Yes
On-screen transmission correction Yes
Imaging Performance
Image capture frequency 9 Hz refresh rate or 60 Hz refresh rate depending upon model variation
Detector type 320 X 240 Focal Plane Array, uncooled microbolometer
Thermal sensitivity (NETD) ≤0.05 �XC and 50 mK
Infrared spectral band 7.5 μm to 14 μm (long wave)
Visual (visible light) camera Industrial performance 2.0 megapixel
Minimum focus distance 46 cm (approx. 18 in)
Standard infrared lens type �EField of view : 23 �X x 17 �X
�ESpatial resolution (IFOV) : 1.25 mRad
�EMinimum focus distance : 15 cm (approx. 6 in)
Optional telephoto infrared lens type �EField of view : 11.5 �X x 8.7 �X
�ESpatial resolution (IFOV) : 0.63 mRad
�EMinimum focus distance : 45 cm (approx. 18 in)
Optional wide-angle infrared lens type �EField of view : 46 �X x 34
�ESpatial resolution (IFOV) : 2.50 mRad
�EMinimum focus distance : 7.5 cm (approx. 3 in)
Focus mechanism Manual, one-handed Smart Focus capability
Image presentation
Palettes �EStandard: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
�EUltra Contrast™: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra
Level and span Smooth auto-scaling and manual scaling of level and span
Fast auto toggle between manual and auto modes Yes
Fast auto-rescale in manual mode Yes
Minimum span (in manual mode) 2.5 �XC (4.5 �XF)
Minimum span (in auto mode) 5 �XC (9 �XF)
IR-Fusion® information
Automatically aligned (parallax corrected) visual and IR blending Yes
Picture-In-Picture (PIP) Three levels of on-screen IR blending displayed in center of LCD
Full screen infrared Three levels of on-screen IR blending displayed in center of LCD
Color alarms (temperature alarms) High-temperature alarm (user-selectable)
Image capture and data storage
Image capture, review, save mechanism The Ti32 allows user to adjust palette, blending, level, span, IR-Fusion® mode, emissivity, and reflected background temperature compensation, and transmission correction on a captured image before it is stored.
Voice annotation 60 seconds maximum recording time per image; reviewable playback on imager
Storage medium One-handed image capture, review, and save capability
File formats SD Memory Card (2 GB memory card will store at least 1200 fully radiometric (.is2) IR and linked visual images each with 60 seconds voice annotations, or 3000 basic bitmap (.bmp) images, or 3000 jpeg (.jpeg) images; transferrable to PC via included multi-format USB card reader
Export file formats w/SmartView® software �ENon-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2)
�ENo analysis software required for non-radiometric (.bmp and .jpeg) files
General Specifications
Operating temperature -10 �XC to +50 �XC (14 �XF to 122 �XF)
Storage temperature -20 �XC to +50 �XC (-4 �XF to 122 �XF) without batteries
Relative humidity 10 % to 95 % non-condensing
Display 9.1 cm (3.7 in) diagonal landscape color VGA (640 x 480) LCD with backlight and clear protective cover
Controls and adjustments User selectable temperature scale (�XC/�XF)
Language selection
Time/Date set
Emissivity selection
Reflected background temperature compensation
Transmission correction
User selectable hot spot and cold spot, and center point on the image (other custom markers and shapes in SmartView® software)
High temperature alarm
User selectable backlight: ��Full Bright or��Auto
Information display preference
Software SmartView® and SmartView Mobile App - full analysis and reporting software included
Batteries Two lithium ion rechargeable smart battery packs with five-segment LED display to show charge level
Battery life Four+ hours continuous use per battery pack (assumes 50 % brightness of LCD and average usage)
Battery charge time 2.5 hours to full charge
AC battery charging Two-bay ac battery charger (110 V ac to 220 V ac, 50/60 Hz) (included), or in-imager charging. AC mains adapters included. Optional 12 V automotive charging adapter.
AC operation AC operation with included power supply (110 V ac to 220 V ac, 50/60 Hz). AC mains adapters included.
Power saving Sleep mode activated after five minutes of inactivity, automatic power off after 30 minutes of inactivity
Safety standards IEC 61010-1: Cat None, Pollution degree 2
Electromagnetic compatibility Meets all applicable requirements in EN61326-1:2006
C Tick IEC/EN 61326-1
US FCC CFR 47, Part 15 Class B
Vibration 0.03 g2/Hz (3.8 grms), IEC 68-2-6
Shock 25 g, IEC 68-2-29
Drop 2 meter (6.5 feet) with standard lens
Size (H x W x L) 27.7 cm x 12.2 cm x 17.0 cm (10.9 in x 4.8 in x 6.7 in)
Weight (battery included) 1.05 Kg (2.3 lb)
Enclosure rating IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Warranty Two-years (standard)
Recommended calibration cycle Two-years (assumes normal operation and normal aging)
Supported languages Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish

Accessories

 Ti Accessories
Telephoto Infrared Lens FLUKE Telephoto Infrared Lens

For use with Ti32 ,Ti29 and Ti27 Infrared Cameras.

Field-of-View (FOV) is 8.6�X x 6.5�X


FLUKE Wide-angled infrared lens Wide-angle Infrared Lens

For use with Ti32 ,Ti29 and Ti27 Infrared Cameras.

Field-of-View (FOV) is 42.5�X x 32.5�X
