TiX660 Infrared Thermal Imager Contact us for more details

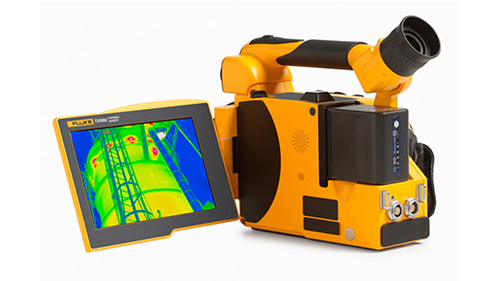

FLUKE TIX660
FLUKE TIX660

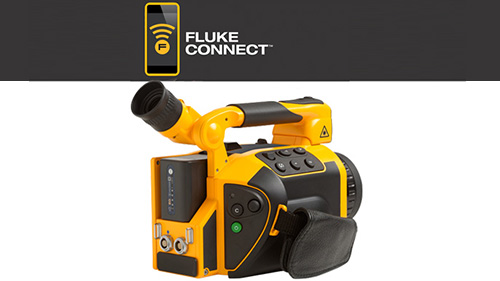

FLUKE TIX660

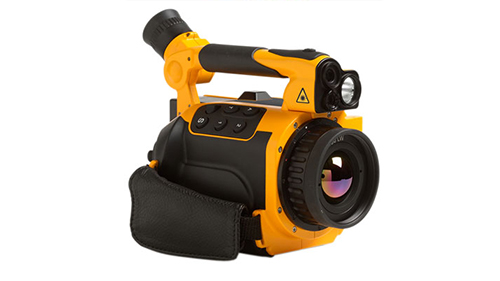

FLUKE TIX660
temp-thumb
temp-thumb
temp-thumb
temp-thumb
Features

• Connect to the largest network of wireless test and measurement tools with Fluke Connect™ (not available in all areas).
• Conduct inspections from a safe distance and still get close-in shots with the 32 times on-camera digital zoom.
• Choose the most convenient image transfer protocol for your application: Camera data ports: Image transfer: SD card, USB 2.0, video output DVI-D (HDMI). GigE vision and RS232 available in 2015. SmartViewR software: SD card. USB 2.0, GigE Vision and RS232 available in 2015.
• Get the sharpest ever IR-Fusion® images with an 8MP visible light camera
• Versatile viewing options for in-field viewing of images with viewfinder for outdoor use.
• User defined programmable buttons to personalize for quick access to most used features.
• The only handheld cameras that can be sub-windowed to 240 Hz frame rate for advanced applications (add on option).

What is Subwindowing?
Sudden and rapid temperature changes can be a critical part of certain analysis. The Expert Series cameras (TIX1000, TiX660 and TX640) provide an optional Subwindowing mode (available at time of camera purchase). This feature is usually found only in cooled infrared cameras. Using these infrared sequences allows the user to document and analyze many frames of data per second to better understand sudden temperature changes. The following frame rates are available as an optional add-on to the camera:

•Option 1: 384 × 288 (120 fps)
•Option 2: 640 × 120 (240 fps)
Specifications

Detailed Specifications
Image Quality
IFOV (spatial resolution) 0.8 mRad
Image resolution (pixel) 640 x 480 (307,200 pixels)
1280 x 960 (1,228,800 pixels) (SuperResolution mode)
Frame rate (@ max. image resolution) 60 and 9 Hz
SuperResolution & Dynamic SuperResolutin (resolution enhancement) Yes, MicroScan technology quadruples IR measurement pixels
Subwindowing modes available - subwindowing options are not available on 9 Hz models: (add on at time of order) Option 1: 384 x 288 (120 fps)
Option 2: 640 x 120 (240 fps)
Field of View (FOV) w/standard 30mm lens 30.9° x 23.1°
Thermal sensitivity (NETD) ≤ 0.03 °C at 30 °C target temp (30 mK)
Spectral range 7.5 μm to 14 μm
Wireless Connectivity
Fluke Connect® compatible Yes, with Fluke Connect® WiFi SD Card, available in approved certified regions only
IR-Fusion® Technology
AutoBlend™ mode Yes
Viewing modes Picture-in-picture, continuous blending, color alarms (above and below user defined temperatures)
Focus System
LaserSharp® Auto Focus Yes
Auto focus Yes
Manual focus Yes, with the touch of a finger for tighter views
EverSharp multifocal recording Yes, Multifocal recording captures images from different focal distances and combines them into one image displaying each object sharply for the best image quality
Temperature Measurement
Range -40 °C to +1200 °C (-40 °F to 2192 °F), High temperature option - request at time of order: up to 2000 °C (3632 °F)
Accuracy ± 1.5 °C or ± 1.5 %
Correction functions LDC™ - Laser rangefinder based distance correction, emissivity (manual or material table)
Transmissivity, ambient temperature, humidity (option)
Data Storage and Image Capture
Image/ Video storage SDHC memory card
Interfaces for image/data transfer Supported in camera data ports: Image transfer: SD card, USB 2.0, video output DVI-D (HDMI). GigE vision and RS232 available in 2015
SmartView® software: SD card. USB 2.0, GigE Vision and RS232 available in 2015
General Specifications
Laser pointer Yes, laser class: 2
Laser distance meter Accuracy: ± 1.5 mm
Range: 70 m (230 ft)
Wavelength: 635 nm (red)
Laser class: 2
Display Extra-large 5.6" color TFT display, 1280 × 800 pixel resolution, Suitable for daylight operation
Geo-localization Built-in GPS for geo-referencing
Digital visible light camera Up to 8 megapixel resolution for image and video recording
Digital zoom Up to 32x digital zoom
Text annotation Yes
Voice annotation Yes
Audio Integrated microphone and loudspeaker for voice annotations
A/D conversion 16 bit
Power supply External: 12 VDC ... 24 VDC
Battery: Standard Li-Ion video camera battery
Replaceable Smart Batteries with LED level indicator Two
Operating temperature -25 °C to +55 °C (-13 °F to 131 °F)
Storing temperature -40 °C to +70 °C (-40 °F to 158 °F)
Humidity Relative humidity 10 % to 95 %, non-condensing
Shock Operational: 25G, IEC 68-2-29
Vibration Operational: 2G, IEC 68-2-6
Protection class IP54
Ergonomics Camcorder w/ handle
Viewfinder Tiltable LCoS color viewfinder display, 800 × 600 pixel resolution
Dimensions (with standard 1.0/30 mm lens) 210 mm × 125 mm × 155 mm (8.25 in x 4.9 in x 6.1 in)
Weight (with standard 1.0/30 mm lens) 1.95 kg (4.3 lb)
Measurement functions (selection) Multiple measurement spots & Regions of Interest (ROIs), hot/cold spot detection, isotherms, profiles, differences
Automatic functions (selection) Focus, image, level, range, NUC, lens recognition, image optimization, alarm sequence
SmartView® software Yes
Supported languages Czech, Dutch, English, Finnish, French, German, Hugarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese and Turkish.
Warranty 2 years

*Fluke Connect is not available in all countries.

All trademarks are the property of their respective owners. Smart phone, wireless service and data plan not included with purchase. First 5 GB of storage is free. Compatible with iPhone 4x and up running iOS 7 or higher, iPad (in an iPhone frame on iPad) and Galaxy S4, Nexus 5, HTC One running Android™ 4.4.x or higher. Apple and the Apple logo are trademarks of Apple Inc. registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Google Play is a trademark of Google Inc.

Accessories

 Thermal Imaging Accessories
FLK-XBattery FLK-XBattery

Sony-NP-QM Battery for the TiX1000, TiX660 and TiX640 Infrared Cameras.
FLUKE FLK-XCalibration FLK-XCalibration

FLUKE FLK-XCharger
FLK-XCharger



FLUKE FLK-XEthernet 5m Connector
FLK-XEthernet 5m Connector

Sony-BC-VM50 charger and power cable for the TiX1000, TiX660 and TiX640 Infrared Cameras.


FLUKE FLK-XEthernet 5m Connector FLK-XHDMI

HDMI cable for the TiX1000, TiX660 and TiX640 Infrared Cameras.

FLUKE FLK-XLens-Cal FLK-XLens-Cal

Single lens calibration for wide angle, standard and telephoto lenses added after the camera’s initial purchase. Its suggested that lenses be calibrated every 2 years. Macro lenses do not need separate calibrations as they sit on top of calibrated lenses.

FLUKE FLK-XPowerPlug FLK-XPowerPlug

Power plug 15V with 5 extensions for the TiX1000, TiX660 and TiX640 Infrared Cameras.

FLUKE FLK-XLens-Cal FLK-XSubwindow

Subwindowing modifies the number of pixels used on the array allowing the camera to achieve a higher refresh rate than without it. Calibration is needed for each Subwindowing mode ordered.

FLUKE FLK-Xlens/Macro1 Macro 1 Infrared Lens

Close up macro lens (0.2x) for inspection and analysis in research and development applications – compatible with TiX1000, TiX660 and TiX640 models. Applications: Research and development, extremely small targets, PCB boards (heat dissipation), semiconductor substrates, and seals.


Applications

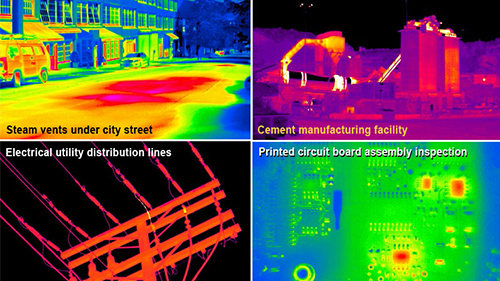

TIX1000 FLUKE
Easy to see details from long distances.
•4 times the on-camera pixels of infrared detection than standard 320x240 cameras - 640 x 480 resolution (307,200) pixels
•Enhanced image quality and temperature measurement accuracy – get 4 times the resolution and pixels than standard mode with SuperResolution (up to 1,228,800 pixels)
•Work from safer distances. Inspect areas that you could not get close to any other way and still get spectacular, detailed infrared images.
•Get a premium in-field viewing experience for quick issue identification with the large 5.6 inch high resolution LCD screen
R&D testing of material absorbency and moisture permeation.
R&D testing of material absorbency and moisture permeation.
•Save time focusing with the most advanced focus options available for consistently in focus images: LaserSharpR Auto Focus, auto focus, manual and EverSharp multifocal recording features - available on one camera.
•The Fluke Expert Series offers the best flexibility of the entire Fluke infrared camera portfolio to capture spectacular images close up or from a distance. The TiX660 is compatible with 8 lens options (2x and 4x telephoto lenses, 2 wide angle lenses, 3 macro lenses, and 1 standard lens).
8 optional lens for maximum versatility.
•The Fluke Expert Series offers the best flexibility of the entire Fluke infrared camera portfolio to capture spectacular images close up or from a distance. The TiX660 is compatible with 8 lens options (2x and 4x telephoto lenses, 2 wide angle lenses, 3 macro lenses, and 1 standard lens).

What is SuperResolution?
SuperResolution provides 4x the resolution that's available on camera. Select the SuperResolution mode before you capture images. Then transfer them to the included SmartView® software and select the SuperResolution mode to reveal 3,145,728 pixels and see infrared in a whole new way.

What is EverSharp?
EverSharp mode utilizes the focus motor to capture multiple images from varying focal distances with the push of a button. Using special algorithms, SmartView® software will combine images taken from multiple focal distances and will create an image that sharpens the detail of not just the initial focal point, but also enhances the focus of the elements around the focal point. These infrared images turn out very impressive as all objects are then displayed in superb image quality. Turn great images into spectacular images.








Fluke Tix Thermal Imager
