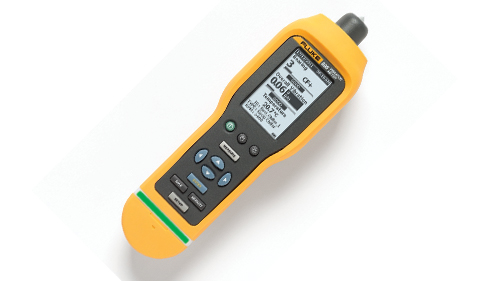

Features
Superior image quality

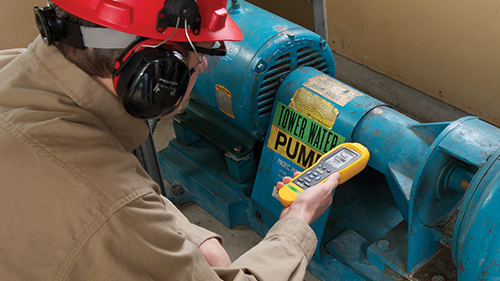

�E Innovative sensor design helps minimize measurement variations caused by device angle or contact pressure
�E Consistent data quality at both low and high frequency ranges
�E Four-level scale indicates severity of problems for overall vibration and bearing condition
�E Exportable data via USB
�E Trending in Microsoft® Excel using built-in templates
�E Overall vibration measurement (10 Hz to 1,000 Hz) for acceleration, velocity and displacement units of measurement for a wide variety of machines
�E Crest Factor+ provides reliable bearing assessment using direct sensor tip measurements between 4,000 Hz and 20,000 Hz
�E Colored lighting system (green, red) and on-screen comments indicate how much pressure needs to be applied to take measurements
�E Temperature measurement with Infrared Temperature Sensor increases diagnostic capabilities
�E On-board memory holds up to 3,500 measurements
�E Audio output for listening to bearing tones directly

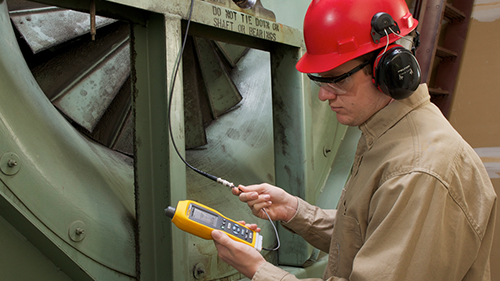

�E External accelerometer support for hard to reach locations
�E Flashlight for viewing measurement locations in dark areas

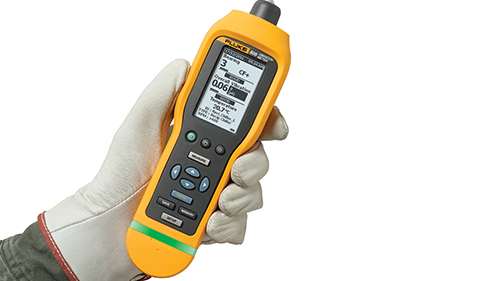

�E Large screen with high resolution for easy navigation and viewin
Specifications
| Vibration Meter |
| Low frequency range (overall measurement) |
10 Hz to 1,000 Hz |
| High frequency range (CF+ measurement) |
4,000 Hz to 20,000 Hz |
| Severity levels |
Good, Satisfactory, Unsatisfactory, Unacceptable |
| Vibration limit |
50 g peak (100 g peak-peak) |
| A/D converter |
16-bit |
| Signal to noise ratio |
80 dB |
Sampling rate
Low frequency
High frequency |
20,000 Hz
80,000 Hz |
| Real time clock backup |
Coin battery |
| Sensor |
| Sensitivity |
100 mV g �� 10% |
| Measurement range |
0.01 g to 50 g |
| Low frequency range (overall measurement) |
10 Hz to 1,000 Hz |
| High frequency range |
4,000 Hz to 20,000 Hz |
| Resolution |
0.01 g |
| Accuracy |
At 100 Hz �� 5% of measured value |
| Amplitude Units |
| Acceleration |
g, m/sec2
|
| Velocity |
in/sec, mm/sec |
| Displacement |
mils, mm |
| Infrared Thermometer (Temperature Measurement) |
| Range |
-20 �XC to 200 �XC (-4 �XF to 392 �XF) |
| Accuracy |
��2 �XC (4 �XF) |
| Focal length |
Fixed, at ~3.8 cm (1.5") |
External Sensor
Note: Fluke supports but does not provide external sensors |
| Frequency range |
10 Hz to 1,000 Hz |
| Bias voltage (to supply power) |
20 V dc to 22 V dc |
| Bias current (to supply power) |
Maximum 5 mA |
| Firmware |
| External interfaces |
USB 2.0 (full speed) communication |
| Data capacity |
Database on internal flash memory |
| Upgrade |
Through USB |
| Memory |
Up to 3,500 measurements |
| Radiated Emission |
| Electrostatic discharge: burst |
Standard EN 61000-4-2 |
| Electromagnetic interference |
Standard EN 61000-4-3 |
| RE |
Standard CISPR 11, Class A |
| Environmental |
| Operating temperature |
-20 �XC to 50 �XC (-4 �XF to 122 �XF) |
| Storage temperature |
-30 �XC to 80 �XC (-22 �XF to 176 �XF) |
| Operating humidity |
10% to 95% RH
(non-condensing) |
| Operating/storage altitude |
Sea level to 3,048 meters (10,000 feet) |
| IP rating |
IP54 |
| Vibration limit |
500g peak |
| Drop test |
1 meter |
| General Specifications |
| Battery type |
AA (2)Lithium Iron Disulfide |
| Battery life |
250 measurements |
| Size (L x W x H) |
24.1 cm x 7.1 cm x 5.8 cm
(9.5 in x 2.8 in x 2.3 in) |
| Weight |
0.40 kg (0.89 lb) |
| Connectors |
USB mini-B 7-pin, stereo audio output jack (3.5 mm Audio Plug), external sensor jack (SMB connector) |
