Ti90 Infrared Thermal Imager Contact us for more details

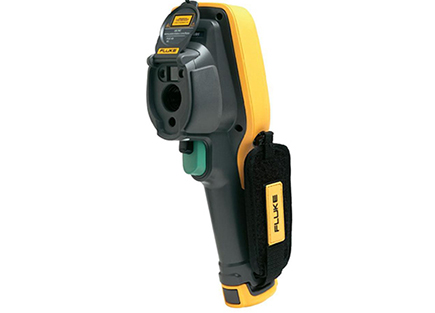

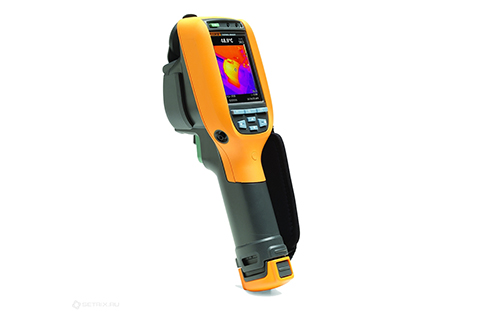

FLUKE Ti95
FLUKE Ti95
FLUKE Ti29
FLUKE Ti29
temp-thumb
temp-thumb
temp-thumb
temp-thumb
Features

  • Superior image quality, up to 84% better spatial resolution than other competitive models in this price class1
  • 80 x 60 resolution
  • Removable 4 GB SD memory card
  • Get context for the infrared image by switching to the full visible (IR-Fusion® AutoBlend™ mode and Picture-in-Picture available in SmartView® software)
  • 2 megapixel built-in digital camera
  • 3.5 in LCD
  • Smart Battery System - Lithium ion smart battery pack with five-segment LED display to show charge level
  • Rugged, lightweight, point�Vand�Vshoot infrared camera

1 Class is defined as an industrial handheld infrared camera in the same price range based on MSRP as of May 1, 2014.

Superior Image Quality

Superior image quality

  • Up to 84% better spatial resolution that other cameras in this price class1
  • Get context for the infrared image with Picture-in-Picture and full visible on camera (IR-Fusion® AutoBlend™ mode available in SmartView® software)
  • 2 megapixel built-in digital camera
32% Larger LCD Display

32% larger LCD display

  • 3.5in LCD
  • Ruggedized display
4gb_sdcard

Extensive SD memory system

  • Removable 4GB SD memory card

For higher resolution and more advanced specifications see the Fluke Ti125.

SmartView® software is included with all Fluke infrared camera.

1 Class is defined as an industrial handheld infrared camera in the same price range based on MSRP as of May 1, 2014.

Specifications

Key Features
IFOV (spatial resolution) 5.6 mRad
Resolution 80 x 80 (6,400 pixels)
Field of view 19.5�X H x 26�X V
Wireless connectivity Yes
Focus system Fixed focus 46 cm (18 in) and beyond
Ruggedized display 3.5 inch diagonal (portrait format)
Rugged, ergonomic design for one-handed use Yes
Thermal sensitivity (NETD) ≤ 0.15�XC at 30�XC target temp (150 mK)
Temperature measurement range (not calibrated below -10�XC) -20�XC to +250�XC (-4�XF to +482�XF)
Level and span Smooth auto and manual scaling
Fast auto toggle between manual and auto modes Yes
Minimum span (in manual mode) Yes
Minimum span (in manual mode) 2.5�XC
Minimum span (in auto mode) 5�XC
Built-in digital camera (visible light) 2 megapixel industrial performance
Frame rate 9 Hz only
Data Storage and Image Capture
Extensive SD memory system Removable 4 GB SD memory card
Direct download via USB-to-PC connection
Image capture, review, save mechanism One-handed image capture, review, and save capability
File formats image Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2)
No analysis software required for non-radiometric (.bmp, .jpg) files
Memory review Thumbnail view navigation and review selection
Software SmartView® software and SmartView® Mobile app - full analysis and reporting software
Export file formats with SmartView® software BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF
Battery
Batteries (field-replaceable, rechargeable) One lithium ion smart battery pack with five-segment LED display to show charge level
Battery life Four+ hours continuous use per battery pack (assumes 50% brightness of LCD and average usage)
Battery charge time 2.5 hours to full charge
AC battery charging system In-imager charging. AC mains adapters included in 9 Hz versions. Optional two-bay AC battery charger (110 V AC to 220 V AC, 50/60 Hz) or optional 12 V automotive charging adapter.
AC operation AC operation with included power supply (110 V AC to 220 V AC, 50/60 Hz). AC mains adapters included.
Power saving User selectable sleep and power off modes
Temperature Measurement
Accuracy ��2�XC or 2% (at 25�XC nominal, whichever is greater)
On-screen emissivity correction Yes (both number and table)
On-screen reflected background temperature compensation Yes
Color Palettes
Standard palettes 3: Ironbow, blue-red, grayscale
General Specifications
Infrared spectral band 9 �gm to 15 �gm (long wave)
Operating temperature -10�XC to +50�XC (14�XF to 122�XF)
Storage temperature -20�XC to +50�XC (-4�XF to 122�XF)
Relative humidity 10% to 95%, non-condensing
Center-point temperature measurement Yes
Spot markers Hot and cold spot markers
Center box (MIN-MAX-AVG) Fixed-size measurement box with MIN-MAX-AVG temp
Safety standards CSA (US and CAN): C22.2 No. 61010-1-04, UL: UL STD 61010-1 (2nd Edition), ISA: 82.02.01
Electromagnetic compatibility EN 61326-1:2006 IEC 61326-1:2005
C Tick IEC/EN 61326-1
US FCC EN61326-1; FCC Part 5
Vibration 2 G, IEC 68-2-6
Safety standards IEC 61010-1: Cat None, Pollution degree 2
Electromagnetic compatibility EN 61326-1:2006 IEC 61326-1:2005
C Tick IEC/EN 61326-1
US FCC EN61326-1; FCC Part 5
Vibration 2G, IEC 68-2-6
Shock 25 g, IEC 68-2-29
Drop Engineered to withstand 2 m (6.5 ft) drop
Size (H x W x L) 28.4 x 8.6 x 13.5 cm (11.2 x 3.4 x 5.3 in)
Weight (battery included) 0.726 kg (1.6 lb)
Enclosure rating IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Warranty Two-years (standard), extended warranties are available
Recommended calibration cycle Two-years (assumes normal operation and normal aging)
Supported languages Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish

Accessories

 Ti Accessories

Fluke Ti Tripod
Fluke Tripod 2

This specially-engineered, lightweight, one-piece mounting accessory quickly and easily attaches to your Ti125, Ti110, Ti100, Ti95, Ti90, TiR125 or TiR110 infrared camera and allows you to mount to a standard tripod or monopod for those applications or situations that require a more stable or semi-fixed platform.


FLUKE CV400 Infrared Window

CV400 ClirVu® 95 mm
(4 in) Infrared Window

Save time with quick and easy installation with the CV Series �V 5 minutes or less.

- One technician

- One hole with standard Greenlee® punch

- Panel door does not need to be removed

- Grounds instantly to metal enclosure with patent-pending AutoGround™ process

- Maintains panel arc test ratings up to 63kA when properly installed



DATASHEET

FLUKE CV300 Infrared window

CV300 ClirVuR 95 mm
(4 in) Infrared Window

Save time with quick and easy installation with the CV Series �V 5 minutes or less.

- One technician

- One hole with standard Greenlee® punch

-Panel door does not need to be removed

-Grounds instantly to metal enclosure with patent-pending AutoGround™ process



DATASHEET
