Features

Superior image quality
�E Delivers the clear, crisp images needed to find problems fast with its 320x240 sensor.
�E Identify even the smallest temperature differences that could indicate problems with industry-leading thermal sensitivity (NETD).

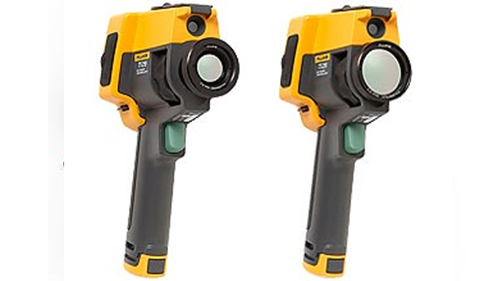

�E Automatic alignment (parallax correction) of visual and infrared images with Fluke patented IR-Fusion® �E Optional telephoto and wide angle lenses available for added versatility and special applications. (easily installable in the field)

Easy to use
�E Field replaceable batteries give you maximum flexibility no matter where your work takes you.
�E Intuitive, three-button menu is easy to use�Xsimply navigate with the push of a thumb.
�E No need to carry pen and paper�Xrecord findings by speaking into the imager. Voice annotations can be recorded with every image you take. Voice comments are saved along with individual images for future reference.
�E One-handed focus capability, emissivity correction, reflected background temperature compensation, and transmission correction increase the accuracy of measurements in most situations.
�E Adjustable hand strap for left-or right-handed use.
�E Everything needed to get started is included.

Rugged
�E Optimized for field use in challenging work environments.
�E Engineered and tested to withstand a 2 m (6.5 ft) drop for the ultimate peace of mind - When was the last time you dropped a tool or piece of equipment?
�E Withstands dust and water�Xtested to an IP54 rating.
�E Manufactured in the U.S.A.

Specifications

Detailed Specifications
Temperature
Temperature measurement range (not calibrated below -10 �XC)	-20 �XC to +600 �XC (-4 �XF to +1112 �XF)
Temperature measurement accuracy	�� 2 �XC or 2 % (at 25 �XC nominal, whichever is greater)
On-screen emissivity correction	Yes
On-screen reflected background temperature compensation	Yes
On-screen transmission correction	Yes
Imaging Performance
Image capture frequency	9 Hz refresh rate or 60 Hz refresh rate depending upon model variation
Detector type	Focal Plane Array, uncooled microbolometer, 280 X 210 pixels
Total pixels	43,200
Thermal sensitivity (NETD)	≤0.05 �XC at 30 �XC target temp. (50 mK)
Infrared spectral band	7.5 μm to 14 μm (long wave)
Visual (visible light) camera	Industrial performance 2.0 megapixel
Minimum focus distance	46 cm (approx. 18 in)
Standard infrared lens type	�EField of view : 23 �X x 17 �X �ESpatial resolution (IFOV) : 1.67 mRad �EMinimum focus distance : 15 cm (approx. 6 in)
Optional telephoto infrared lens type	�EField of view : 11.5 �X x 8.7 �X �ESpatial resolution (IFOV) : 0.84 mRad �EMinimum focus distance : 45 cm (approx. 18 in)
Optional wide-angle infrared lens type	�EField of view : 46 �X x 34 �ESpatial resolution (IFOV) : 3.34 mRad �EMinimum focus distance : 7.5 cm (approx. 3 in)
Focus mechanism	Manual, one-handed Smart Focus capability
Image presentation
Palettes	�EStandard: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted �EUltra Contrast™: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra
Level and span	Smooth auto-scaling and manual scaling of level and span
Fast auto toggle between manual and auto modes	Yes
Fast auto-rescale in manual mode	Yes
Minimum span (in manual mode)	2.5 �XC (4.5 �XF)
Minimum span (in auto mode)	5 �XC (9 �XF)
IR-Fusion® information
Automatically aligned (parallax corrected) visual and IR blending	Yes
Picture-In-Picture (PIP)	Three levels of on-screen IR blending displayed in center of LCD
Full screen infrared	Three levels of on-screen IR blending displayed in center of LCD
Color alarms (temperature alarms)	High-temperature alarm (user-selectable)
Image capture and data storage
Image capture, review, save mechanism	The Ti27 allows user to adjust palette, blending, level, span, IR-Fusion® mode, emissivity, and reflected background temperature compensation, and transmission correction on a captured image before it is stored.
Voice annotation	60 seconds maximum recording time per image; reviewable playback on imager
Storage medium	One-handed image capture, review, and save capability
File formats	SD Memory Card (2 GB memory card will store at least 1200 fully radiometric (.is2) IR and linked visual images each with 60 seconds voice annotations, or 3000 basic bitmap (.bmp) images, or 3000 jpeg (.jpeg) images; transferrable to PC via included multi-format USB card reader
Export file formats w/SmartView® software	�ENon-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2) �ENo analysis software required for non-radiometric (.bmp and .jpeg) files
General Specifications
Operating temperature	-10 �XC to +50 �XC (14 �XF to 122 �XF)
Storage temperature	-20 �XC to +50 �XC (-4 �XF to 122 �XF) without batteries
Relative humidity	10 % to 95 % non-condensing
Display	9.1 cm (3.7 in) diagonal landscape color VGA (640 x 480) LCD with backlight and clear protective cover
Controls and adjustments	User selectable temperature scale (�XC/�XF)
	Language selection
	Time/Date set
	Emissivity selection
	Reflected background temperature compensation
	Transmission correction
	User selectable hot spot and cold spot, and center point on the image (other custom markers and shapes in SmartView® software)
	High temperature alarm
	User selectable backlight: ��Full Bright or��Auto
	Information display preference
Software	SmartView® and SmartView Mobile App - full analysis and reporting software included
Batteries	Two lithium ion rechargeable smart battery packs with five-segment LED display to show charge level
Battery life	Four+ hours continuous use per battery pack (assumes 50 % brightness of LCD and average usage)
Battery charge time	2.5 hours to full charge
AC battery charging	Two-bay ac battery charger (110 V ac to 220 V ac, 50/60 Hz) (included), or in-imager charging. AC mains adapters included. Optional 12 V automotive charging adapter.
AC operation	AC operation with included power supply (110 V ac to 220 V ac, 50/60 Hz). AC mains adapters included.
Power saving	Sleep mode activated after five minutes of inactivity, automatic power off after 30 minutes of inactivity
Safety standards	IEC 61010-1: Cat None, Pollution degree 2
Electromagnetic compatibility	Meets all applicable requirements in EN61326-1:2006
C Tick	IEC/EN 61326-1
US FCC	CFR 47, Part 15 Class B
Vibration	0.03 g2/Hz (3.8 grms), IEC 68-2-6
Shock	25 g, IEC 68-2-29
Drop	2 meter (6.5 feet) with standard lens
Size (H x W x L)	27.7 cm x 12.2 cm x 17.0 cm (10.9 in x 4.8 in x 6.7 in)
Weight (battery included)	1.05 Kg (2.3 lb)
Enclosure rating	IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Warranty	Two-years (standard)
Recommended calibration cycle	Two-years (assumes normal operation and normal aging)
Supported languages	Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish
