Ti300 Infrared Thermal Imager Contact us for more details

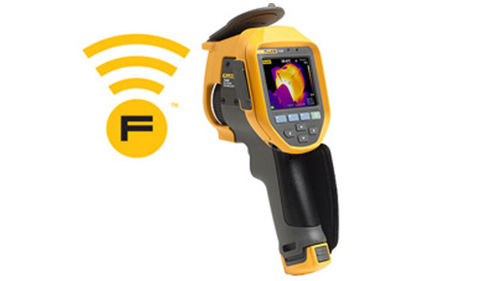

FLUKE Ti300
FLUKE Ti300
FLUKE Ti300
FLUKE Ti300
temp-thumb
temp-thumb
temp-thumb
temp-thumb
Features

�E Detect and communicate issues faster with patented Fluke IR-Fusion® technology with AutoBlend™ mode
�E Faster communication with wireless image transfer directly to your PC, Apple® iPhone® or iPad®
�E Capture up to 5 additional measurements with the CNX™ Wireless System*
�E One-handed, easy-to-use user interface �E Ruggedized high resolution 640x480 capacitive touch screen for quick menu navigation
�E Capture additional digital images to show location or additional site details with IR-PhotoNotes™ Annotation System
�E More advanced display output options to get the details via streaming video to PC or high definition monitor (USB and HDMI)
�E Voice recording and annotation gets additional details saved with the image file
�E Optional interchangeable lenses for greater flexibility in additional applications
�E Rechargeable, field replaceable smart batteries with LED display to show charge levels for excellent field flexibility
�E 5 MP industrial-performance digital camera for high definition image quality
�E Included SmartView® and SmartView Mobile App Analysis and Reporting Software

Specifications

Detailed Specifications
Temperature
Temperature measurement range (not calibrated below -10 �XC) -20 �XC to +650 �XC
(-4 �XF to +1202 �XF)
Temperature measurement accuracy �� 2 �XC or 2 % (at 25 �XC nominal, whichever is greater)
On-screen emissivity correction Yes (by number and table)
On-screen reflected background temperature compensation Yes
On-screen transmission correction Yes
Imaging Performance
Image capture frequency 9 Hz refresh rate or 60 Hz refresh rate depending upon model variation
Detector type Focal Plane Array, uncooled microbolometer, 240 x 180 pixels
Thermal sensitivity (NETD) ≤0.05 �XC at 30 �XC target temp (50 mK)
Total pixels 43,200
Infrared spectral band 7.5 μm to 14 μm (long wave)
Visual (visible light) camera Industrial performance 5.0 megapixel
Standard Infrared Lens Type
Field of view 24 �X x 17 �X
Spatial resolution (IFOV) 1.75 mRad
Minimum focus distance 15 cm (approx. 6 in)
Optional Telephoto Infrared Lens Type, Available Soon
Field of view 12 �X x 9 �X
Spatial resolution (IFOV) 0.65 mRad
Minimum focus distance 45 cm (approx. 18 in)
Optional Wide-Angle Infrared Lens Type, Available Soon
Field of view 46 �X x 34 �X
Spatial resolution (IFOV) 3.49 mRad
Minimum focus distance 15 cm (approx. 6 in)
Focus Mechanism
LaserSharp™ auto focus system Yes
Advanced manual focus Yes
Image Presentation
Palettes
Standard Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast™ Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra
Level and span Smooth auto-scaling and manual scaling of level and span
Fast auto toggle between manual and auto modes Yes
Fast auto-rescale in manual mode Yes
Minimum span (in manual mode) 2.0 �XC (3.6 �XF)
Minimum span (in auto mode) 3.0 �XC (5.4 �XF)
IR-Fusion® Information
Picture-in-Picture (PIP) Yes
Full screen infrared Yes
AutoBlend™ mode Yes
Color alarms (temperature alarms) High-temperature , low-temperature, and isotherm (user-selectable)
Image Capture and Data Storage
Image capture, review, save mechanism One-handed image capture, review, and save capability
Storage medium Micro SD Memory Card, on-board flash memory, save-to-USB capability, direct download via USB-to-PC connection
File formats Non-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2)
No analysis software required for non-radiometric (.bmp and jpg) files
Export file formats w/SmartView® software BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF
Memory review Thumbnail view navigation and review selection
Other Times-Saving and Productivity Features
Voice annotation 60 seconds maximum recording time per image; reviewable playback on imager
IR-PhotoNotes™ Yes
Wi-Fi connectivity Yes, to PC, iPhone®, iPad® and WiFi to LAN*
Text annotation* Yes
Video recording* Standard and radiometric
Streaming video Via USB to PC and HDMI to HDMI compatible screen
CNX wireless system* Yes
Cardinal compass* Yes
Auto capture (temperature and interval)* Yes
Remote control and operation (for special and advanced applications) No
General Specifications
Operating temperature -10 �XC to +50 �XC (14 �XF to 122 �XF)
Storage temperature -20 �XC to +50 �XC (-4 �XF to 122 �XF) without batteries
Relative humidity 10 % to 95 % non-condensing
Ruggedized touchscreen display (capacitive) 8.9 cm (3.5 in) diagonal landscape color VGA (640 x 480) LCD with backlight
Controls and adjustments User selectable temperature scale (�XC/�XF)
Language selection
Time/Date set
Emissivity selection
Reflected background temperature compensation
Transmission correction
User selectable hot spot and cold spot, and center point on the image
Expandable-contractable Measurement Box with MIN-AVG-MAX temp
Color alarms
User selectable backlight setting graphical information display preference
Graphical information display preference
Software SmartView® and SmartView Mobile App - full analysis and reporting software included
Batteries Two lithium ion rechargeable smart battery packs with five-segment LED display to show charge level, all models
Battery life Four+ hours continuous use per battery pack (assumes 50 % brightness of LCD and average usage)
Battery charge time 2.5 hours to full charge
AC battery charging Two-bay ac battery charger (110 V ac to 220 V ac, 50/60 Hz) (included), or in-imager charging. AC mains adapters included. Optional 12 V automotive charging adapter. All models
AC operation AC operation with included power supply (110 V ac to 220 V ac, 50/60 Hz). AC mains adapters included.
Power saving User selectable sleep and power off modes
Safety standards

UL 61010-1:2012 CAN/CSA-C22.2 No.61010-1-12 IEC 61010-1 3rd Edition (2010)

Electromagnetic compatibility EN 61326-1:2006 IEC 61326-1:2005
C Tick IEC/EN 61326-1
US FCC CFR 47, Part 15 Subpart B Class B
Vibration 0.03 g2/Hz (3.8 grms), 2.5g IEC 68-2-6
Shock 25 g, IEC 68-2-29
Drop Engineered to withstand 2 meter (6.5 feet) with standard lens
Size (H x W x L) 27.7 cm x 12.2 cm x 16.7 cm (10.9 in x 4.8 in x 6.5 in)
Weight (battery included) 1.04 Kg (2.3 lb)
Enclosure rating IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Warranty Two-years (standard), extended warranties are available.
Recommended calibration cycle Two-years (assumes normal operation and normal aging)
Supported languages Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish

*Coming soon via firmware update. Users notified via SmartView software when available.

Accessories

 Ti Accessories
Telephoto Infrared Lens 2 Telephoto Infrared Lens 2
(2X magnification)

For use with Ti400, Ti300 and Ti200 Infrared Cameras.

Field-of-View (FOV) is 12 �X x 9

FLUKE Wide-angled infrared lens Wide-angle Infrared Lens

For added versatility and special applications use with Ti400, Ti300 and Ti200 models.

Field-of-View (FOV) is 12 �X x 9 �X


FLUKE CV400 Infrared Window

CV400 ClirVu® 95 mm
(4 in) Infrared Window

Save time with quick and easy installation with the CV Series �V 5 minutes or less.

- One technician

- One hole with standard Greenlee® punch

- Panel door does not need to be removed

- Grounds instantly to metal enclosure with patent-pending AutoGround™ process

- Maintains panel arc test ratings up to 63kA when properly installed



DATASHEET

FLUKE CV300 Infrared window

CV300 ClirVuR 95 mm
(4 in) Infrared Window

Save time with quick and easy installation with the CV Series �V 5 minutes or less.

- One technician

- One hole with standard Greenlee® punch

-Panel door does not need to be removed

-Grounds instantly to metal enclosure with patent-pending AutoGround™ process



DATASHEET







LaserSharp auto focus video
Click to try the CNX system online
Your ROI with FLUKE Thermal Imager
