Ti105 Infrared Thermal Imager Contact us for more details

FLUKE Ti105
FLUKE Ti105
FLUKE Ti105
FLUKE Ti105
temp-thumb
temp-thumb
temp-thumb
temp-thumb
Features

�E Exclusive IR-OptiFlex™ focus system�Xensures that images are in good focus from 1.2 meters (4 feet) and beyond for optimum image clarity and scanning convenience. For shorter distances change to manual mode with the touch of a finger.
�E Always have references handy�XIR-PhotoNotes™ annotation system�XQuickly identify and keep track of inspection locations by adding digital images of important information and surrounding areas.

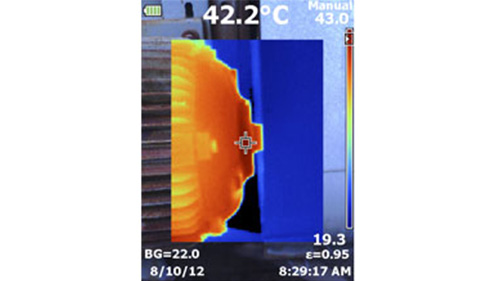

�E Find problems faster and easier�XIR-Fusion® with AutoBlend™ mode�XAccurately identify potential issues by combining digital and IR images with AutoBlend. It blends digital and partially transparent IR images into a single information-filled image.

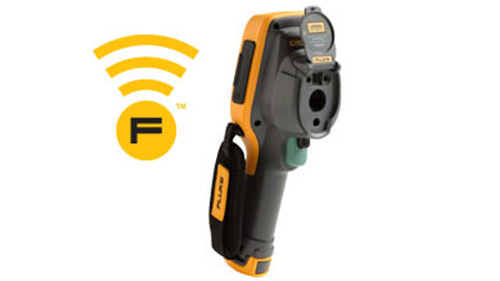

�E Capture current measurements fast and conveniently from up to five wireless modules at once using your Fluke thermal imager and CNX wireless modules.
�E Multi-mode video recording�Xfocus-free video in visible light and infrared with full IR-Fusion.
�E Easily communicate the location of problems with the Electronic Compass (8-Point Cardinal).

Specifications

Detailed Specifications
IR resolution (FPA size) 160 x 120 FPA Uncooled Microbolometer
Spectral band 7.5 μm to 14 μm (long wave)
Capture or refresh rate 9 Hz or 30 Hz versions
NETD (Thermal sensitivity) ≤0.10 �XC at 30 �XC target temp (100 mK)
FOV (Field of view) 22.5 �XH x 31 �XV
IFOV (Spatial resolution) 3.39 mRad
Temperature measurement range (not calibrated below -10�XC) -20�XC to +250�XC (-4�XF to +482�XF)
Temperature measurement accuracy �� 2 �XC or 2 % (at 25 �XC nominal, whichever is greater)
Focus mechanism Focus-free 1.2 m (4 ft) and beyond
IR-Fusion® technology PIP (1.2 m (4 ft) to 4.6 m (15 ft)), Full IR, Full Visible
CNX wireless enabled Yes (where available)
Color alarms �X
Standard palettes Blue-Red, Ironbow, Grayscale and Amber
Ultra Contrast™ palettes �X
Hot/cold markers �X
User definable spot markers In SmartViewR only
Centerbox (MIN/AVG/MAX) �X
Level and span control Manual and auto
Minimum span in auto mode 5�XC
Minimum span in manual mode 2.5�XC
Minimum IR focus distance 122 cm (48 in)
Weight 0.726 kg (1.6 lb)
Size 28.4 x 8.6 x 13.5 cm (11.2 x 3.4 x 5.3 in)
LCD display 3.5 inch diagonal (portrait format)
Visible camera 2 megapixel industrial-grade
Minimum automatic parallax correction 122 cm (48 in)
IR-PhotoNotes™ annotation system �X
Laser pointer Yes
Torch Yes
Electronic (cardinal) compass �X
Emissivity correction Yes
Transmission correction �X
Background (reflected) compensation Yes
Voice annotation (audio) �X
Multi-mode video output �X
Multi-mode video recording (standard avi w/ mpeg encoding) �X
Multi-mode video recording (radiometric .Is3) �X
Memory review Thumbnail review
Battery (field-replaceable, rechargeable) One
Battery life 4+ hours (each)*
External battery charging base Optional (accessory)
Charging power supply Yes

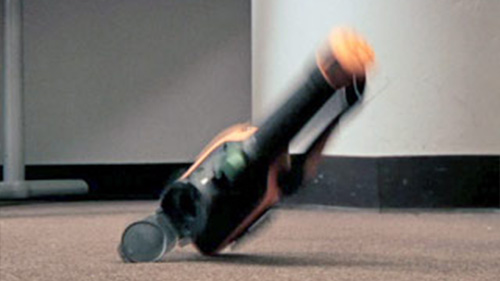

Drop test 2 meter (6.5 feet)
Ingress protection (IP) rating (IEC 60529) IP 54
Recommended Calibration cycle Two-years
Multifunction card reader �X
Memory storage 2 GB SD memory card
Direct download capability Mini USB download direct to PC
Operating temperature range -10 �XC to +50 �XC (14 �XF to 122 �XF)
Storage temperature range -20 �XC to +50 �XC (-4 �XF to 122 �XF)
Operating humidity Operating and storage 10 % to 95 %, Non-condensing
Vibration and shock 2G, IEC 68-2-26 and 25G, IEC 68-2-29
Safety standards IEC 61010-1: Cat None, Pollution degree 2
C Tick IEC/EN 61326-1
EMI, RFI, EMC EN61326-1; FCC Part 5
User manuals Czech, English, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Dutch, and Hungarian
Standard warranty period Two-years
Extended warranty and service plans Yes

*Assumes 50% brightness of LCD
