Features
�E Unlimited applications �V
See data sheet for powerful applications and details >>

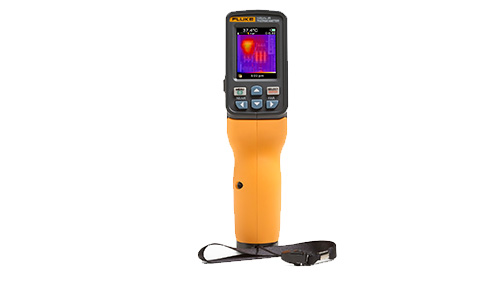

�E Built-in digital camera �V Every Fluke Visual IR Thermometer has a built-in digital camera

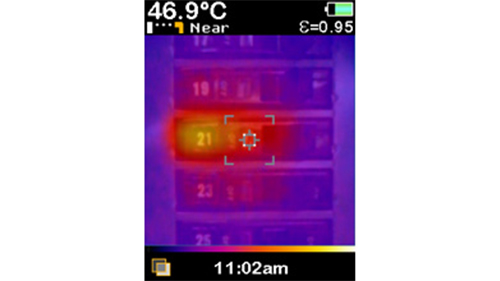

�E Exclusive thermal heat map blending overlay �V With one button, blend digital images and thermal heat maps to instantly show the exact location of the issue
�E No training required - Fully automatic with built-in intelligence

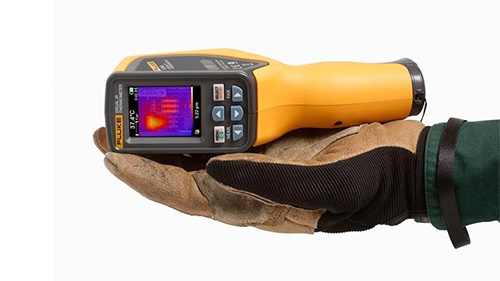

�E True pocket size design �V Less than half the size of an average infrared camera
�E SmartView® reporting software �V Store up to 10,000 images per Gb on included SD card and make professional reports on included professional software
�E Automatic hot and cold spot trackers
�E Breakthrough affordability �V Fraction of the cost of infrared cameras that require costly training and software
The Fluke VT04 adds:
�E Powerful resolution with PyroBlend® Plus optics
o Best-in-class field of view: 28�X x 28�X (40% wider for tight spaces)
o 4 times sharper images
�E Alarm and time lapse features
o Hi/Lo temperature alarm �V Find hot spots in seconds with the alarm feature

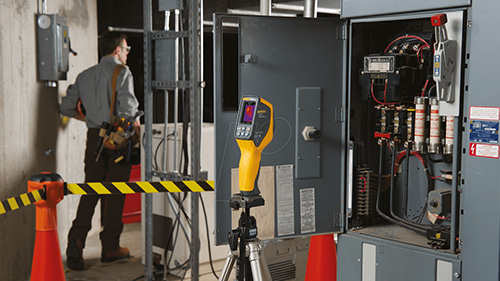

o Time lapse image capture �VAutomatically monitor equipment over time
o Automated monitoring alarm �V Automatically capture images after an alarm has been triggered
Specifications
| Key Features |
| Built-in digital camera |
Yes |
| Thermal heat map overlay |
Yes, five blending modes |
| Image optics system |
PyroBlend® Plus optic *4x sharper image than VT02 |
| Field of view |
28�X x 28�X |
| Hi-Lo temperature alarms |
Yes |
| Time lapse image capture |
Yes |
| Auto-monitor alarm |
Yes |
| Battery type |
Li-Ion rechargeable |
| Training |
No training required |
| Ergonomics |
Slim pocket-sized design |
| Hot and cold markers |
Yes |
| General Features |
| Battery life |
Eight (8) hours |
| Temperature measurement range |
-10 �XC to +250 �XC (14 �XF to 482 �XF)
|
| Temperature measurement accuracy |
+/- 2 �XC or +/- 2 %
|
| Temperature measurement |
Yes, centerpoint |
| Storage medium (micro SD card) |
Stores up to 10,000 images per Gb (Four (4) Gb card included) |
| Infrared spectral band |
6.5 μm to 14 μm
|
| Level and span |
Auto |
| Focus mechanism |
Focus free, no training required with built-in intelligence |
| Focus options-exclusive user selectable NEAR/FAR options |
NEAR < 23 cm (9 in); FAR > 23 cm (9 in) |
| Dimensions |
21 cm x 7.5 cm x 5.5 (8.3 in x 3 in x 2.2 in); < 350 g. (12.5 oz.) |
| File format |
.is2 format saved to SD card. User can create professional reports or export images in SmartView (BMP, DIB, GIF, SPE, FIF, SPEG, JPG, PNG, TIF and TIFF) |
| Safety and compliance |
CFR47: 2009 Class A. Part 15 subpart B; CE: EN 61326:2006; IEC/EN 61010-1:2010 |
| Warranty |
Two (2) years |
