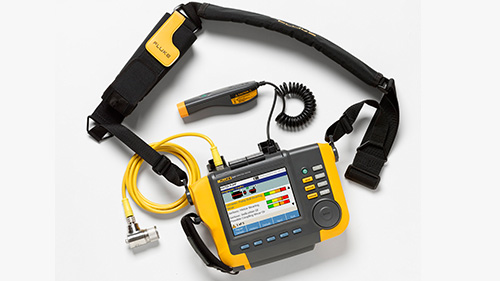

| Diagnostic specifications |
| Standard faults |
Unbalance, looseness, misalignment and bearing failures
|
| Analysis for |
Motors, fans, blowers, belts and chain drives, gearboxes, couplings, centrifugal pumps, piston pumps, sliding vane pumps, propeller pumps, screw pumps, rotary thread/gear/lobe pumps, piston compressors, centrifugal compressors, screw compressors, closed coupled machines, spindles |
| Machine rotational speed range |
200 rpm to 12000 rpm |

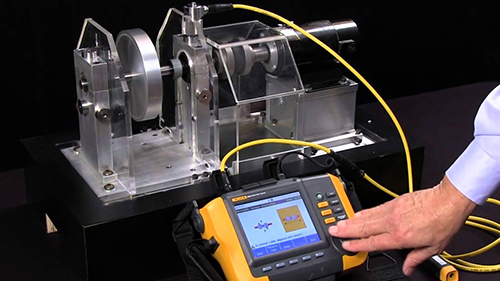

| Diagnosis details |

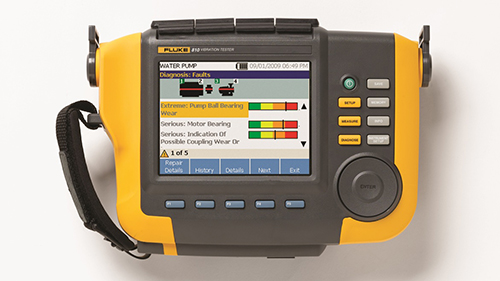

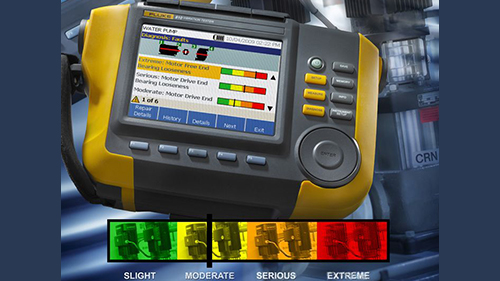

Plain-text diagnosis, fault severity (slight, moderate, serious, extreme), repair details, cited peaks, spectra |
| Electrical specifications |
| Ranging |
Automatic |
| A/D converter |
4 channel, 24 bit |
| Usable bandwidth |
2 Hz to 20 kHz |
| Sampling |
51.2 Hz |
| Digital signal processing functions |
Automatically configured anti-alias filter, high-pass filter, decimation, overlapping, windowing, FFT, and averaging |
| Sampling rate |
2.5 kHz to 50 kHz |
| Dynamic range |
128 dB |
| Signal to noise ratio |
100 dB |
| FFT resolution |
800 lines |
| Spectral windows |
Hanning |
| Frequency units |
Hz, orders, cpm |
| Amplitude units |
in/sec, mm/sec, VdB (US), VdB* (Europe) |
| Non-volatile memory |
SD micro memory card, 2 GB internal + user accessible slot for additional storage |
| General specifications |
| Dimensions (HxDxW) |
18.56 cm x 7.00 cm x 26.72 cm (7.30 in x 2.76 in x 10.52 in)
|
| Weight (with battery) |
1.9 kg (4.2 lb) |
| Display |
1/4 VGA, 320 �� 240 Color (5.7 inch diagonal) TFT LCD with LED backlight |
| Input/Output Connections |
| Triaxial sensor connection |
4 pin M12 connector |
| Single axis sensor connection |
BNC connector |
| Tachometer Connection |
Mini DIN 6 pin connector |
| PC Connection |
Mini 'B'USB (2.0) connector |
|
| Battery |
| Battery type |
Lithium-ion, 14.8 V, 2.55 Ah |
| Battery charging time |
Three hours |
| Battery discharge time |
Eight hours (under normal conditions) |
|
| Warranty |
Three-years |
| Environmental Specifications |
| Operating temperature |
0 �XC to 50 �XC (32 �XF to 122 �XF) |
| Storage temperature |
-20 �XC to 60 �XC (-4 �XF to 140 �XF) |
| Operating humidity |
10 % to 95 % RH (non-condensing) |
| Agency approvals |
CHINA RoHS, CSA, CE, C TICK, WEEE |
| Electromagnetic compatibility |
EN 61326-1:2006, EN 61010:1:2001 2nd ed. |
| Sensor specifications |
| Sensor type |
Accelerometer |
| Sensitivity |
100 mV/g (�� 5 %, 25 �XC) |
| Acceleration range |
80 g peak |
| Amplitude nonlinearity |
1% |
| Frequency response |
Z 2 - 7,000 Hz �� 3dB
X, Y 2 - 5,000 Hz �� 3dB
|
| Power requirement (IEPE) |
18 V dc to 30 V dc, 2 mA to 10 mA |
| Bias output voltage |
12 V dc |
| Grounding |
Case grounded |
| Sensing element design |
PZT ceramic / shear |
| Case material |
316Lstaninless steel |
| Mounting |
10-32 captive socket head screw, 2-pole rare earth magnet (48 lb pull strength) |
| Output connector |
4-Pin, M12 |
| Mating connector |
M12 - F4D |
| Non-volatile memory |
TEDS 1451.4 compatible |
| Vibration limit |
500 g peak |
| Shock limit |
5000 g peak |
| Electromagnetic sensitivity, equivalent g |
100 �gg/gauss |
| Sealing |
Hermetic |
| Temperature range |
-50 �XC to 120 �XC (-58 �XF to 248 �XF) �� 7 % |
| Warranty |
One-year |
| Tachometer specifications |
| Dimensions (DxW) |
2.86 cm x 12.19 cm (1.125 in x 4.80 in) |
| Weight |
96 g (3.4 oz) with cable |
| Power |
Powered by 810 Vibration Tester |
| Detection |
Laser Diode Class 2 |
| Range |
6.0 to 99,999 rpm |
| Accuracy |
| 6.0 to 5999.9 rpm |
�� 0.01 % and �� 1 digit |
| 5999.9 to 99999 rpm |
�� 0.05 % and �� 1 digit |
|
| Resolution |
0.1 rpm/span> |
| Effective range |
1 cm to 100 cm (0.4 in to 39.27 in) |
| Response time |
1 second (> 60 rpm) |
| Controls |
Measure on/off transparent button |
| Interface |
6 Pin Mini DIN |
| Cable length |
50 cm (19.586 in) |
| Warranty |
One-year |
| Tachometer accessories |
Reflective tape: 1.5 cm x 52.5 cm (0.59 in �� 20.67 in) |
| Viewer PC Software |
| Minimum hardware requirements |
1 GB RAM |
| Operating system requirements |
Windows XP, Vista |
