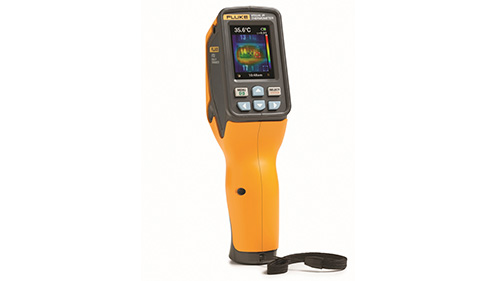

VT02 Visual IR Thermometer Contact us for more details

FLUKE VT02
FLUKE VT02
FLUKE VT02
FLUKE VT02
temp-thumb
temp-thumb
temp-thumb
temp-thumb
Features

1. Measure with confidence Because traditional infrared thermometers only measure an average area, it is often impossible to accurately identify what you are actually measuring; with the Fluke VT02 Visual Thermometer you get the visual image of exactly what you are measuring.

2. Detect issues instantaneously Lose the pen, paper, and clipboard, the Fluke VT02 saves a blended infrared and visual image with every image capture instantly! In one blended picture your customers get the complete picture and can compare readings from different dates which saves them valuable time and ultimately money. The Fluke VT02 has a NEAR/FAR feature that is not available on other products. The NEAR/FAR is exclusive to Fluke Visual IR Thermometers and allows the user to take simultaneous visual images with the thermal heat map images that are accurately aligned close in, ≤23 cm ( 9 in), with the NEAR feature, as well as beyond with the FAR feature. No other product can boast this NEAR visual and thermal heat map alignment feature that allows you to get close-in and document the exact location of the issue.

3. Pinpoint with hot and cold markers Quick and easy detection with hot and cold trackers allow you to pinpoint the temperature source. When you see a hot or cold spot, you can save the image with the temperature reading and pinpoint the exact location using the blending between full thermal to full visual.

4. Document problems with SmartView® software - a brilliant way to sell yourself Producing a professional report with Smartview® Software is just as powerful as the VT02 tool itself. Your customers will be able to communicate the issues that they've detected or document repairs that have been fixed.

5. Troubleshoot efficiently The greatest technological advancement may be how Fluke has made it so simple to capture and blend images. Compact and intuitive, the Fluke VT02's point & shoot focus free design starts finding problems right out of the box with little to no training required. Expand diagnostic services with the Visual Infrared Thermometer. The first to find the problem is oftentimes the first in line to fix the problem. Telling someone they have a problem is not nearly as convincing as proving your point with a visual image blended with a thermal heat map. With the striking affordability of the VT02, your clients can add a high margin service and move from buying one thermal imager for their company to a business expanding tool for each associate.


Specifications

Temperature
Temperature measurement range -10 �XC to +250 �XC (14 �XF to 482 �XF)
Temperature measurement accuracy ��2�XC or ��2% of reading in �XC, whichever is the greater (at 25 �XC nominal) as tested
On-screen emissivity correction Yes
On-screen reflected background temperature compensation Yes
Imaging performance
Image capture frequency 8 Hz
Detector type Uncooled Hyperthin Pyroelectric Ceramic
Infrared spectral band 6.5 µm to 14 µm
Field of View 20�X X 20�X
Imaging presentation
Palettes Ironbow, Rainbow, Rainbow High Contrast, gray scale and inverted gray scale.
Level and span Auto

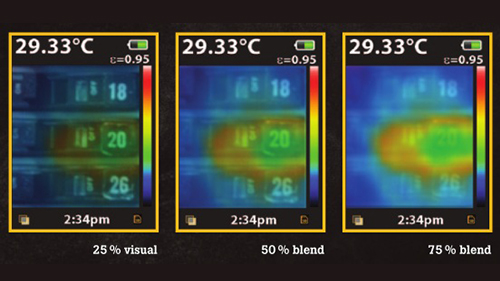

Viewing options Blending of the visual and the infrared from full infrared to full visual in 25% steps.
Hot spot and cold spot tracking Yes
Imaging capture and data storage
Image capture Image will freeze allowing review before saving.
Storage medium 4 GB Micro SD card (stores well over 10,000 individual images).
File format .is2 format saved to SD card. When imported to included SmartViewR reporting software user can create professional reports or images can be exported into multiple formats (BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF AND TIFF).
Memory review Scroll through all saved images and view on screen.
General Specifications
Operating Temperature -10 �XC to +45 �XC (14 �XF to 113 �XF)
Storage Temperature -20 �XC to +60 �XC (-4 �XF to 140 �XF)
Relative humidity 10 % to 90 % non-condensing
Display 2.2 in diagonal
Controls and adjustments Controls and adjustments
Software SmartView® analysis and reporting software.
Batteries 4 AA
Battery Life 8 hrs
Power saving Power down after 10 minutes of inactivity.
Electromagnetic compatibility CE EN61326-1:2006
US FCC CFR47: 2009 Class A. Part 15 subpart B.
Drop MIL-PRF-288000F; Class 2 section 4.5.5.4.2; 30cm
Size (H x W x L) 21cm x 7.5cm x 5.5cm (8.3in x 3in x 2.2in)
Weight (battery included) 385g (13.5 oz)
Warranty 2 years
