TiX520 Infrared Thermal Imager Contact us for more details

FLUKE TIX660
FLUKE TIX660
FLUKE TIX660
FLUKE TIX660
temp-thumb
temp-thumb
temp-thumb
temp-thumb
Features

�EThe largest 5.7 inch responsive LCD touchscreen for a 320x240 infrared camera
�E180�X articulating lens for those tough shots
�EPremium image quality with leading spatial resolution for a 320x240 infrared camera1
�EGet up to 4 times the resolution and pixels than standard mode with SuperResolution (up to 307,200 pixels)
�ELaserSharpR Auto Focus - utilizing precision laser technology, focus on your target with pinpoint accuracy and get the correct image and temperature measurements you need
�EBuilt-in laser distance meter - calculates the distance to your designated target up to 100 feet (30 meters) and displays the distance on the image
�EQuick and easy in-field analysis with IR-FusionR technology and advanced touchscreen functions:

�E Continuous level and span adjustment
�E Filter mode for improved thermal sensitivity
�EPost capture image editing includes:
�E Emissivity
�E Background temperature
�E Transmissivity
�E Palettes
�E Color alarms
�E IR-Fusion
�E Enable/disable markers
�ETemperature measurements up to 1200�XC
�ELight and ergonomic design with neck and hand strap for all day use
�EOptional field installable wide angle and telephoto lenses

1Compared to industrial handheld infrared cameras with 320x240 detector resolution as of October 14, 2014.
Specifications

Detailed Specifications
IFOV with standard lens (spatial resolution) 1.31 mRad
Detector resolution 320 x 240 (76,800 pixels)
Field of view 24 �XH x 17 �XV
Minimum focus distance 15 cm (approx. 6 in)
IFOV with optional telephoto lens 0.65 mRad
Field of View 12 �XH x 9 �XV
Minimum focus distance 45 cm (approx. 18 in)
IFOV with optional wide-angle lens 2.62 mRad
Field of view 46 �XH x 34 �XV
Minimum focus distance 15 cm (approx. 6 in)
SuperResolution* In software
Image sharpening -
LaserSharp® Auto Focus Yes, for consistently in-focus images. Every. Single. Time.
Laser distance meter Yes, calculates distance to the target for precisely focused images and displays distance on screen
Advanced manual focus Yes
Streaming video (remote display) Via USB
Touchscreen display (capacitive) 14.4 cm (5.7 in) diagonal landscape color VGA (640 x 480) LCD with backlight
Wireless CNX Wireless (where available)
IR-FusionR technology Yes
AutoBlend™ technology Yes
Picture-In-Picture (PIP) Yes
Continuous AutoBlend ™ -
Rugged, ergonomic design for one-handed use Rotatable (articulating lens) >180 degrees
Thermal sensitivity (NETD) ≤ 0.05 �XC at 30 �XC target temp (50 mK)
Filter mode (NETD improvement) ≤ 0.04 �XC at 30 �XC target temp (40 mK)
Level and span Smooth auto and manual scaling
Touchscreen adjustable level / span Yes. Span and level can be easy and quickly set by simply touching the screen.
Fast auto toggle between manual and auto modes Yes
Fast auto-rescale in manual mode Yes
Minimum span (in manual mode) 2.0 �XC (3.6 �XF)
Minimum span (in auto mode) 3.0 �XC (5.4 �XF)
Built-in digital camera (visible light) 5 megapixel industrial performance
Frame rate 60 Hz or 9 Hz versions
Laser pointer Yes
LED light (torch) Yes
Digital zoom 2x, 4x
Data Storage and Image Capture
Extensive memory options Removable micro SD memory card, on-board flash memory, save-to-USB capability, direct download via USB-to-PC connection
Image capture, review, save mechanism One-handed image capture, review, and save capability
Post-capture image editing (on camera) Yes. Conduct on camera analysis for in-field results.
Advanced text annotation Yes. Including standard shortcuts as well as user programmable options.
File formats Non-radiometric (.bmp) or (.jpeg) or fully radiometric (.is2); no analysis software required for non-radiometric (.bmp, .jpg and .avi) files
Memory review Thumbnail view navigation and review selection
Software SmartView® software, Fluke Connect™ (where available), and SmartView® Mobile App - full analysis and reporting software
Export file formats with SmartView® software BMP, DIB, GIF, JPE, JFIF, JPEG, JPG, PNG, TIF, and TIFF
Voice annotation 60 seconds maximum recording time per image; reviewable playback on camera; Bluetooth headset provided
IR-PhotoNotes™ Yes
Text annotation Yes
Video recording Standard and radiometric
File formats video Non-radiometric (MPEG - encoded .AVI) and fully radiometric (.IS3)
Remote control and operation (for special and advanced applications) Yes
Auto capture (temperature and interval) Yes
Battery
Batteries (field-replaceable, rechargeable) Two lithium ion smart battery packs with five-segment LED display to show charge level
Battery life Three hours continuous use per battery pack
Battery charge time 2.5 hours to full charge
Battery charging system Two-bay battery charger or in-imager charging. Optional 12 V automotive charging adapter
AC operation AC operation with included power supply (100 V AC to 240 V AC, 50/60 Hz)
Power saving User selectable sleep and power off modes
Temperature Measurement
Temperature measurement range (not calibrated below -10 �XC) '-20 �XC to +1200 �XC (-4 �XF to +2192 �XF)
Accuracy �� 2 �XC or 2 % (at 25 �XC nominal, whichever is greater)
On-screen emissivity correction Yes (both value and table)
On-screen reflected background temperature compensation Yes
On-screen transmission correction Yes
Color Palettes
Standard palettes 8: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
Ultra Contrast™ palettes 8: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra
General Specifications
Color alarms (temperature alarms) High-temperature and low-temperature
Infrared spectral band 7.5 �gm to 14 �gm (long wave)
Operating temperature -10 �XC to +50 �XC (14 �XF to 122 �XF)
Storage temperature -20 �XC to +50 �XC (-4 �XF to 122 �XF) without batteries
Relative humidity 10 % to 95 % non-condensing
Center-point temperature measurement Yes
Spot temperature Hot and cold spot markers
User-definable spot markers 3 user-definable spot markers
Center box Expandable-contractible measurement box with MIN-MAX-AVG temp
Safety IEC 61010-1: Overvoltage Category II, Pollution degree 2
Electromagnetic compatibility IEC 61326-1: Basic EM Environment
CISPR11, Group 1, Class A
Australian RCM IEC/61326-1
US FCC CFR 47, Part 15 Subpart B
Vibration 0.03 g2/Hz (3.8 grms), 2.5g IEC 68-2-6
Shock 25 g, IEC 68-2-29
Drop Engineered to withstand 1 meter (3.4 feet) drop with standard lens
Size (H x W x L) 27.3 cm x 15.9 cm x 9.7 cm (10.8 in x 6.3 in x 3.8 in)
Weight (battery included) 1.5 kg (3.3 lb)
Enclosure rating IP54 (protected against dust, limited ingress; protection against water spray from all directions)
Warranty Two-years (standard), extended warranties are available
Recommended calibration cycle Two-years (assumes normal operation and normal aging)
Supported languages Czech, Dutch, English, Finnish, French, German, Hugarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese and Turkish.
* Coming soon via firmware upgrade

Models & Accessories


Model Name Description

FLK-TiX560-60Hz

Includes:

  • Thermal imager with standard infrared lens
  • Ac power supply and battery pack charger (including universal ac adapters)
  • Two, rugged lithium ion smart battery packs
  • USB cable
  • HDMI video cable
  • Bluetooth headset (where available)
  • Rugged, hard carrying case
  • Adjustable neck and hand strap
  • Flash drive with SmartViewR Software and user manuals
  • Warranty registration card and calibration certificate
 Thermal Imaging Accessories
FLK-XBattery Telephoto Infrared Lens (2X magnification)

For use with Ti400, Ti300 and Ti200 Infrared Cameras.

Optional, field swappable, 2X magnification telephoto thermal lens allows the user to see and measure the temperature of objects at greater distances, or smaller objects at normal distances. For use with the Ti400, Ti300 and Ti200 Infrared Cameras. Field-of-View (FOV) is 12 �X x 9 �X
Wide-angle Infrared Lens 2 Wide-angle Infrared Lens 2

For added versatility and special applications use with Ti400, Ti300 and Ti200 models.

Optional, field swappable, wide angle thermal lens allows the user to have a wider field of view for working in tight spaces. For use with the Ti400, Ti300 and Ti200 Infrared Cameras. Field-of-View (FOV) is 46 �X x 34 �X
 Batteries, Chargers and Adapters
Fluke SBC3B Charging Base FLK-TI-SBC3B

Charging base for Ti-SBP3 Rechargeable Lithium-Ion Battery Packs. Use with models Ti400, Ti300, Ti200, Ti125, Ti110, Ti105, Ti100, TiR125, TiR110, TiR105, Ti32, TIR32, Ti29, TiR29, Ti27 and TiR27.
TI-CAR CHARGER TI-CAR CHARGER

For the ultimate flexibility in the field - recharge your infrared camera wherever and whenever you need to. For use with all models except FlexCam.
Applications

Your view of infrared technology is about to change 180�X. The answer is right before your eyes, even when your target isn't.

Navigate, capture and process images faster
FLUKE TIX560

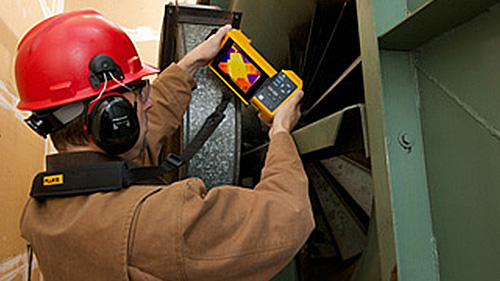

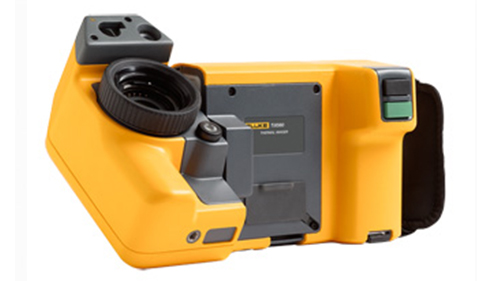

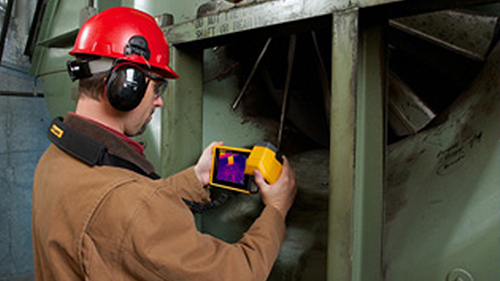

  • Easily navigate over, under and around objects with the 180�X articulating 1ens and see the image before you capture it

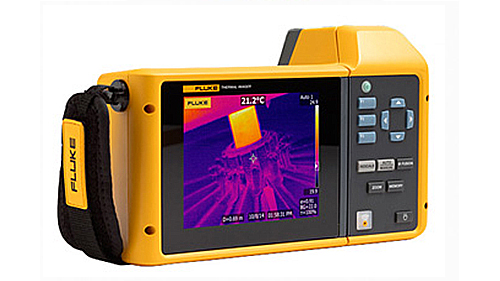

  • Capture images with the only 5.7 inch responsive touchscreen LCD with on-camera analytics for in-field image analysis1
  • Save time with post-capture image processing - edit emissivity, background temperature, transmissivity, palettes, color alarms, IR-Fusion and enable/disable markers all on cameras

In-Focus premium image quality with the touch of a button
in-focus
  • Premium in-field viewing experience with the largest 5.7 inch responsive touchscreen LCD in its class1 - 150% more viewing area3
  • Enhanced image quality and temperature measurement accuracy �V turn your 320x240 images into 640x480 images, that's 4x's the resolution and pixels with SuperResolution (on camera)
  • LaserSharp® Auto Focus, exclusive to Fluke, uses a built-in laser distance meter that calculates and displays the distance to your designated target2 with pinpoint accuracy2
  • Get premium image output in high temp applications by combining multiple sequential frames of data into one with Image Sharpening
  • Find subtle temperature differences easier - instantly improve thermal sensitivity from 45mK to 30mK with Filter mode
  • Optional field installable wide angle and telephoto lenses

1Compared to industrial handheld infrared cameras with 320x240 detector resolution as of October 14, 2014
2Up to 30 meters (100 feet)
3Compared to a standard 3.5 inch screen in this class








Fluke Tix Thermal Imager
LaserSharp auto focus video
Click to try the CNX system online
Your ROI with FLUKE Thermal Imager
Download FLUKE 2015 Catalogue   Register for FLUKE Ti Thermal Imager Demo
